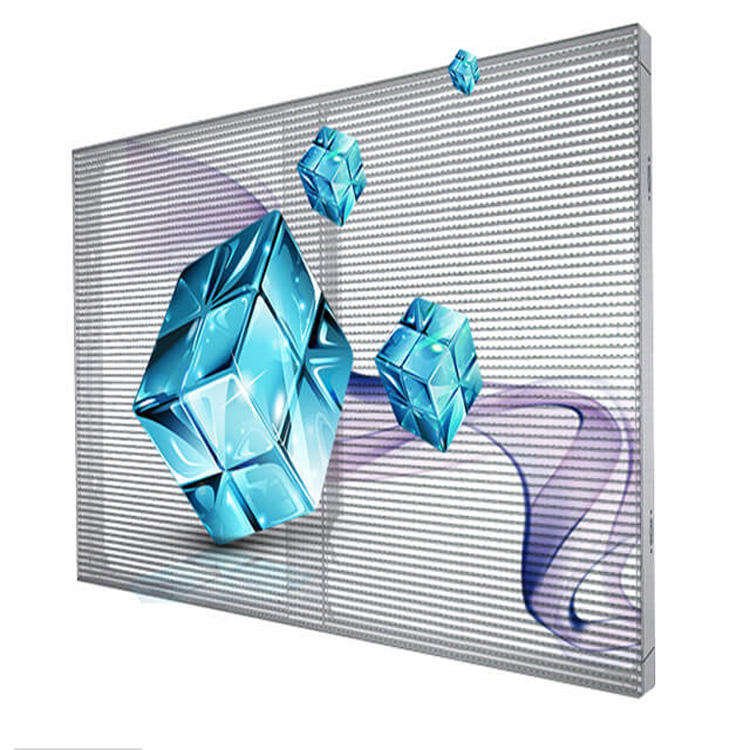

P2.5 High Transparency LED Display

The P2.5 Transparent LED Display represents the next generation of digital signage – one that doesn't sacrifice aesthetics for impact. Unlike traditional LED screens that create a solid, opaque wall, this transparent display allows viewers to see through the screen to whatever is behind it, while still displaying vibrant, full-motion video content. With up to 90% transparency, it preserves natural light, architectural sightlines, and storefront visibility.

With a fine 2.5mm pixel pitch, this display delivers exceptional clarity even at close viewing distances – making it suitable for both indoor retail windows and outdoor building facades. High brightness options (up to 5,500+ nits for outdoor, 1,500 nits for indoor) ensure excellent visibility even in direct sunlight or brightly lit showrooms.

Key Features:

• Ultra-High Transparency (70–90%): The open-frame design achieves transparency rates of 70–90%, depending on pixel pitch and model. Viewers can clearly see products, people, or architecture behind the screen when content is not playing or during bright ambient conditions.

• Fine Pixel Pitch (P2.5): With 2.5mm pixel spacing and approximately 160,000 dots per square meter, this transparent screen delivers HD-like resolution suitable for viewing distances as close as 2–3 meters. Ideal for high-end retail where image quality matters.

• Full Color RGB SMD LEDs: Vibrant, accurate color reproduction with wide viewing angles (140° horizontal / 120° vertical). 16-bit grayscale for smooth gradients and natural skin tones.

• High Brightness Options:

  • Indoor (IP30): 1,200–1,500 nits – perfect for bright retail environments and shopping malls

  • Outdoor (IP65): 5,500–7,000 nits – sunlight-readable for glass curtain walls and building facades

• Ultra-Lightweight Design: The transparent screen structure weighs only 12–18 kg per square meter (typically 50–70% lighter than conventional LED displays). Reduces structural load on glass walls and curtain frames.

• Breathable & Wind-Permeable: The open construction allows natural airflow through the screen, significantly reducing wind load compared to solid panels. Critical for high-rise and outdoor installations.

• Easy Glass Mounting: Can be installed directly onto glass curtain walls using suction cups, structural adhesive, or custom brackets. No need for heavy steel support structures.

• High Refresh Rate (3,840Hz): Broadcast-quality, flicker-free performance for camera recording and live streaming. No scan lines.

• Energy Efficient: Lower power consumption than traditional displays due to the open design and efficient LED drivers. Average power: 150–300W/m².

• Front Maintenance: All modules can be replaced from the front – essential for glass-mounted installations where rear access is impossible.

• Wide Operating Temperature: -20°C to +50°C – suitable for most climates worldwide.

Technical Specifications (P2.5 Transparent LED Display):

What's Included (per m² kit, typical):

• Transparent LED modules (factory-assembled into cabinets or strips)

• Receiving cards (NovaStar or ColorLight compatible)

• Power supplies (built into cabinet or separate)

• Data and power cables (daisy-chain ready)

• Mounting brackets or hardware (glass-specific optional)

• Quick start guide

Complete System Requirements:

• Sending card (e.g., NovaStar VX400, H-series)

• Media player or laptop with HDMI/DVI output

• Main power distribution box

• For outdoor models: weather-sealed junction boxes for connections

Applications:

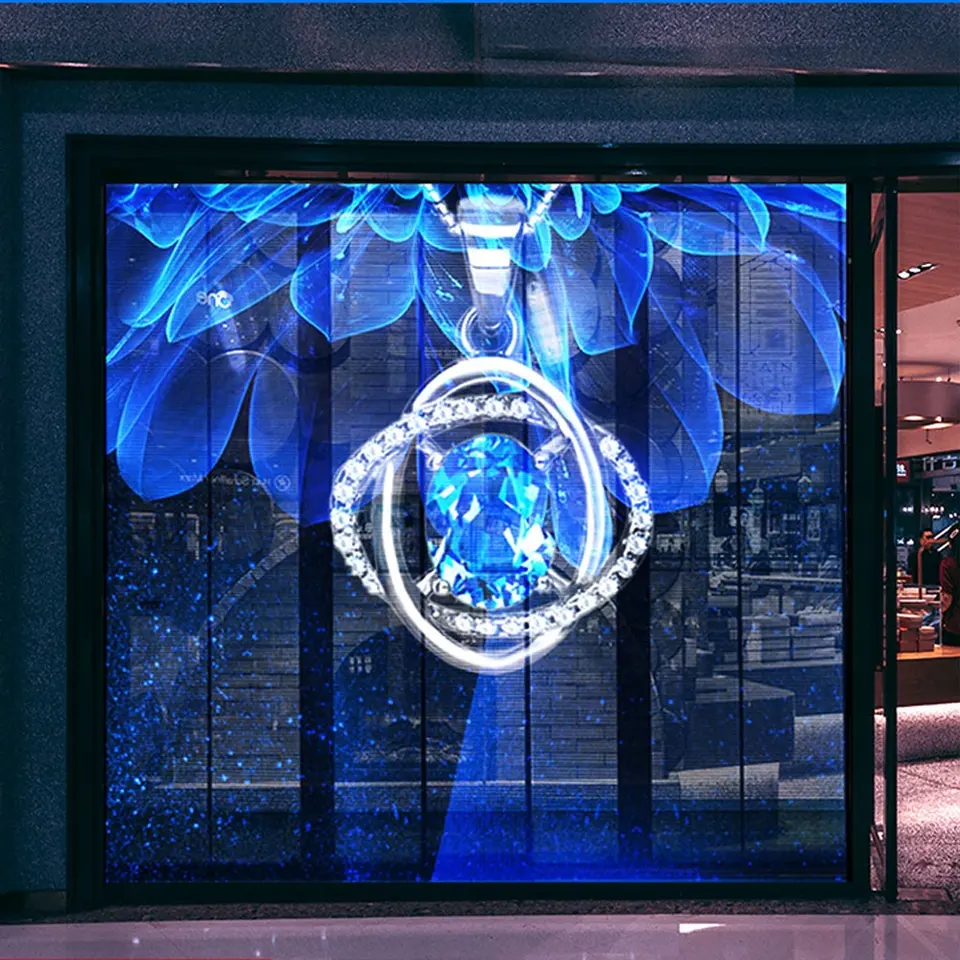

• Retail Storefront Windows: Advertise products without blocking the view into the store. Show promotions while allowing passersby to see merchandise.

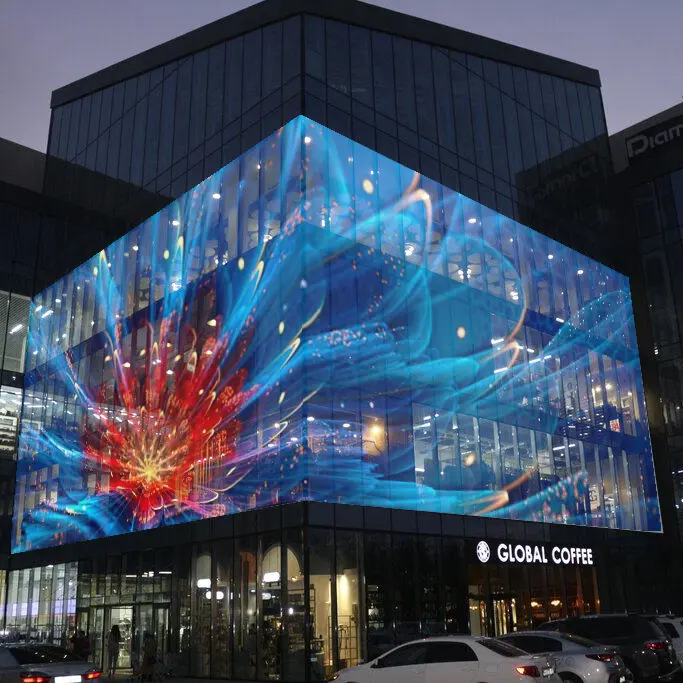

• Glass Curtain Walls (Buildings): Transform office towers into digital landmarks without obstructing interior views or natural light.

• Shopping Mall Atriums: Suspended transparent displays that don't block sightlines between floors.

• Airport & Transit Terminals: Wayfinding and advertising in glass-heavy environments.

• Museums & Exhibitions: Informational displays that don't obstruct exhibits behind them.

• Car Dealerships: Showroom windows with dynamic vehicle promotions while maintaining open visibility.

• Hotels & Lobbies: Reception-area displays that preserve architectural sightlines.

• Banks & Corporate Lobbies: Brand messaging without blocking security sightlines.

Why Choose Transparent LED Over Traditional Displays:

Installation Methods:

1. Glass Curtain Wall Mounting: Suction cups or structural adhesive directly to glass panes. Requires tempered glass rated for the load (typically 50kg per mount point).

2. Metal Frame Mounting: Custom aluminum or steel frame attached to building structure. Suitable for non-glass surfaces.

3. Suspended / Hanging: Cables from ceiling or overhead structure. Popular for atrium installations.

Considerations for Outdoor P2.5 Transparent:

• Outdoor IP65 models include weather-sealed LED modules and waterproof connectors

• Requires proper drainage – the open design allows water to pass through, but power modules and connectors must be protected

• Recommended for sheltered or vertical applications (not ground-level puddling areas)

• UV-stabilized materials prevent yellowing in direct sunlight

Energy Savings vs. Traditional Displays:

Due to the open design and reduced material mass, transparent LED displays typically consume 30–50% less energy for the same brightness level compared to conventional displays. Additionally, because they don't block natural light, they reduce the need for artificial interior lighting during daytime hours.
