H807SA 8-Port Artnet LED Pixel Controller | WS2801, WS2811, DMX512 & SPI

Unleash Your Creativity with Professional Pixel Control

The Hengyu H807SA is a sophisticated 8-port LED pixel controller designed for installers, lighting designers, and integrators who need to manage complex, high-density lighting projects. Bridging the gap between professional lighting networks and LED strips, it translates Art-Net signals from software like Madrix or Jinx into SPI/DMX512 data that thousands of individual LEDs can understand .

Four Powerful Control Modes

The H807SA offers unrivalled flexibility, adapting to your workflow and project needs:

• Art-Net Mode: Connect directly to your local network, use PC software to generate real-time effects.

• DMX Console Mode: Take direct control via a professional lighting desk.

• Offline SD Mode: Upload pre-programmed sequences to an SD card for standalone playback.

• Screen Capture Mode: Mirror a portion of your PC display to the LEDs in real-time .

Exceptional Capacity & Compatibility

• Massive Pixel Count: Controls up to 8,192 pixels (8 ports x 1,024 pixels/port) .

• Wide IC Support: Compatible with WS2801, WS2811, WS2812, WS2813, SK6812, TM1814, UCS1903, LPD6803, DMX512, and over 50 other LED driver ICs .

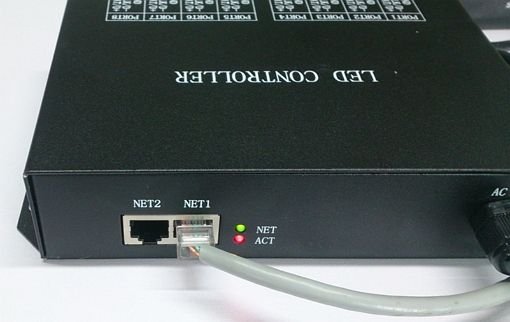

• RJ45 Ethernet Connection: Features Art-net support with a range of up to 100m for flexible installation.

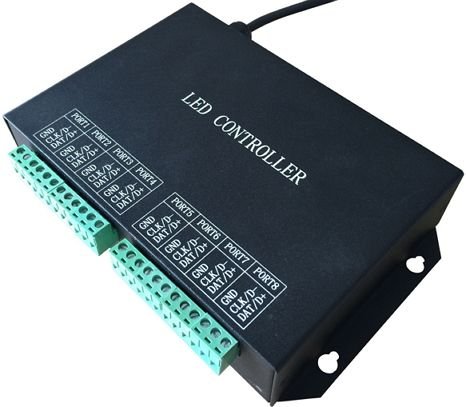

Professional-Grade Hardware and Build

• Construction: Durable Aluminum Alloy housing .

• High-Bandwidth Outputs: 8 ports (NET1/NET2) output SPI or DMX512 signals.

• Onboard Controls: Features an LCD menu screen for adjusting DMX addresses, pixel count, and speed without a computer .

• Sync & Control: Supports LAN synchronization and UDP control for large, multi-controller setups .

What's in the Box?

• 1 x H807SA LED Pixel Controller

• 1 x Power Cord

• 1 x User Manual (Software available for download)
