Professional-Grade Pixel Control for Complex Installations
The H807SA (8-port Ethernet) and H807SB (4-port Wi-Fi) are sophisticated LED pixel controllers designed for lighting designers, integrators, and advanced hobbyists. They bridge the gap between professional lighting networks and high-density LED installations, translating Art-Net, DMX, or Wi-Fi signals into SPI data that thousands of WS2811, WS2812B, and WS2813 pixels can understand .
Four Powerful Control Modes for Ultimate Flexibility
The H807S series offers unrivalled versatility, adapting to any project workflow :
-

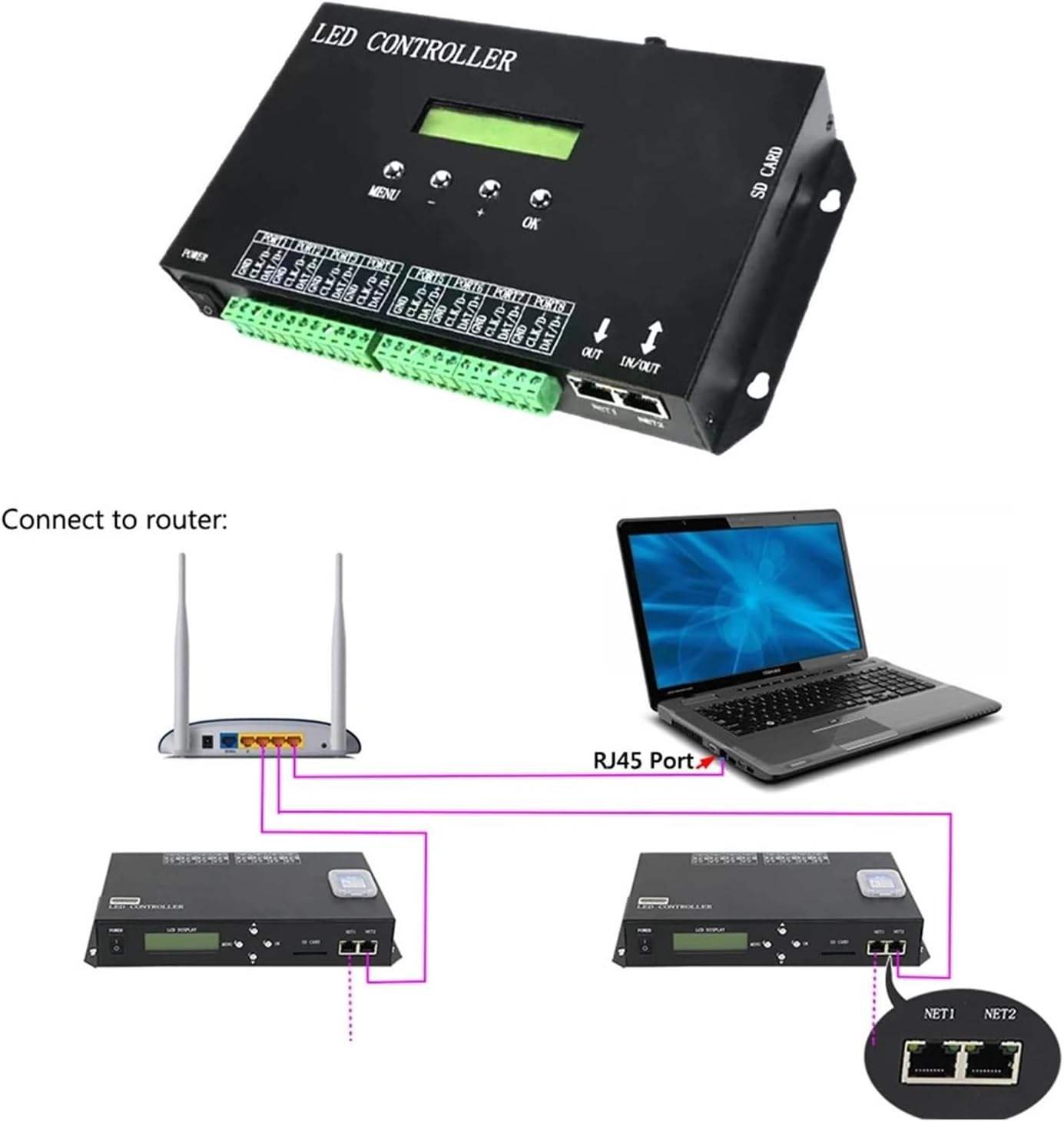

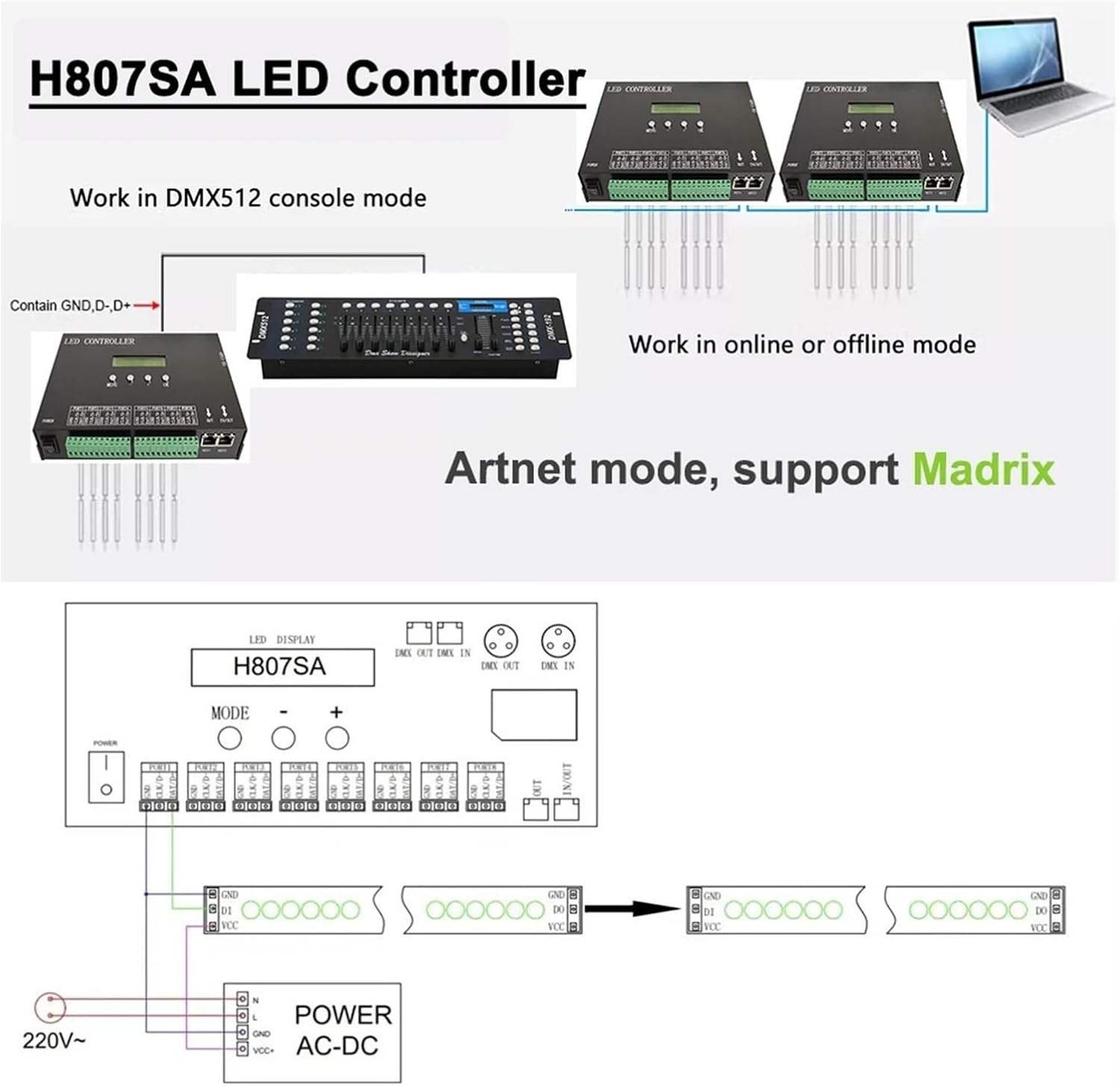

Art-Net Mode (H807SA only): Connect via Ethernet/RJ45 to your local network and use PC software (Madrix, Jinx, LEDEdit) to generate real-time effects. Supports up to 100m remote distance for flexible installation.
-
DMX Console Mode: Connect directly to a professional lighting desk via DMX512 for live control.
-
Offline SD Mode: Upload pre-programmed sequences to an SD card for standalone, reliable playback (supports SDHC up to 64GB).
-
Screen Capture Mode: Mirror a portion of your PC display directly to the LEDs for synchronized video mapping.
Massive Capacity & Broad Compatibility
| Feature | H807SA (8-Port) | H807SB (4-Port Wi-Fi) |
|---|---|---|
| Max Pixels | 8,192 pixels (8 x 1,024) | 4,096 pixels (4 x 1,024) |
| Connection | RJ45 Ethernet (Art-net) | Wi-Fi (2.4GHz) + Bluetooth |
| Control Apps | PC Software (Art-net) | Mobile App (Android/Web) & DMX |
| Input Voltage | AC 90-240V or DC 5-24V (Model dependent) | DC 5-24V |
| Supported ICs | WS2801, WS2811, WS2812, WS2813, WS2815, APA102, SK6812, DMX512, and 50+ more | WS2811, WS2812B, WS2813, WS2815, UCS1903, TM1804, etc. |
Professional Hardware & Build
-
Construction: Durable metal/aluminum alloy housing for heat dissipation and EMI shielding .
-
User Interface: Features a bright LCD display for adjusting DMX addresses, pixel count, and speed without a computer. Includes "HASP" closure for security.
-
Sync Capability: Supports LAN synchronization for multi-controller setups (H807SA) and wireless sync for H807SB units .
-

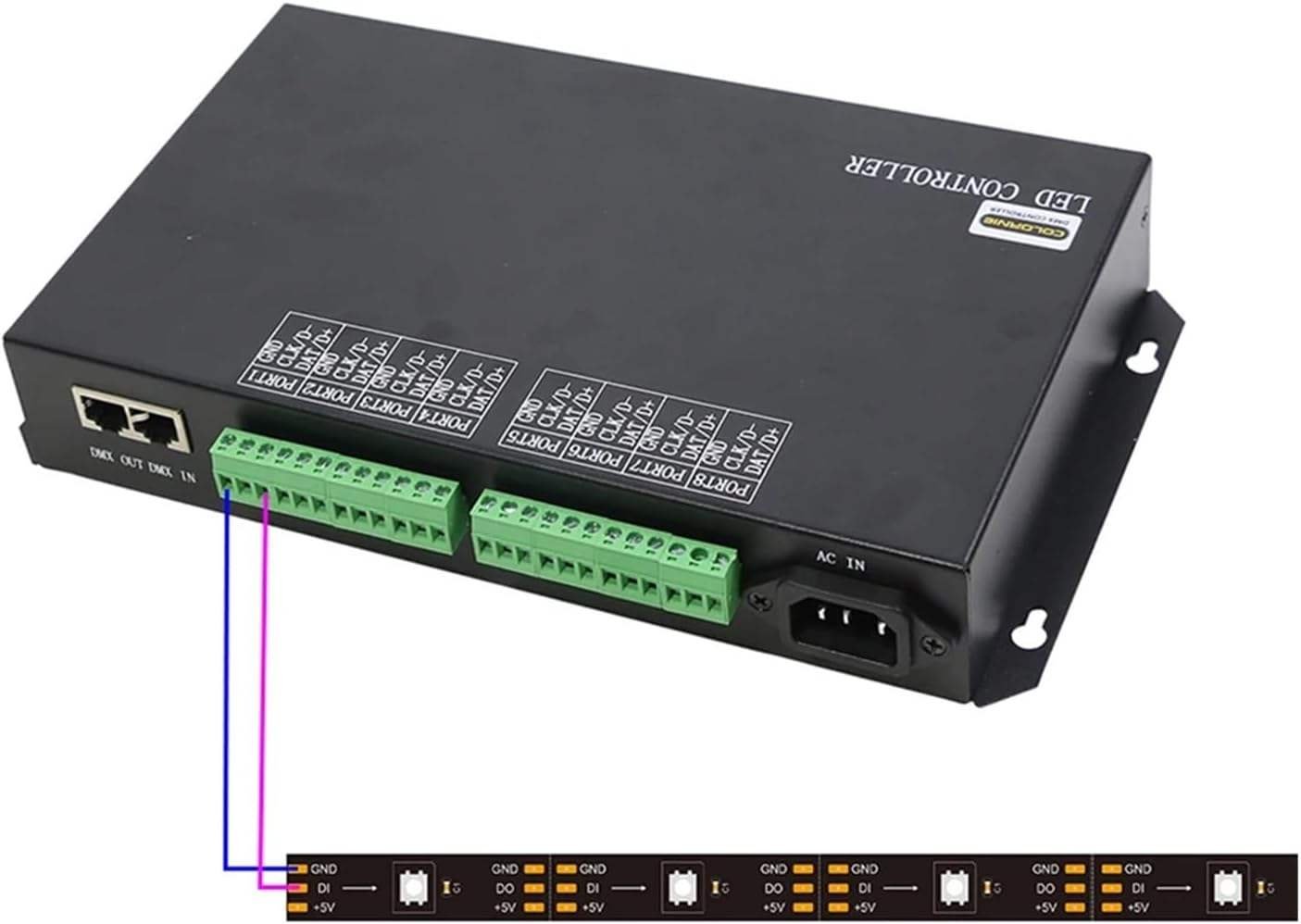

Output: 8 high-speed SPI ports (NET1/NET2) outputting TTL signal at 800Kbps.
What's in the Box?
-

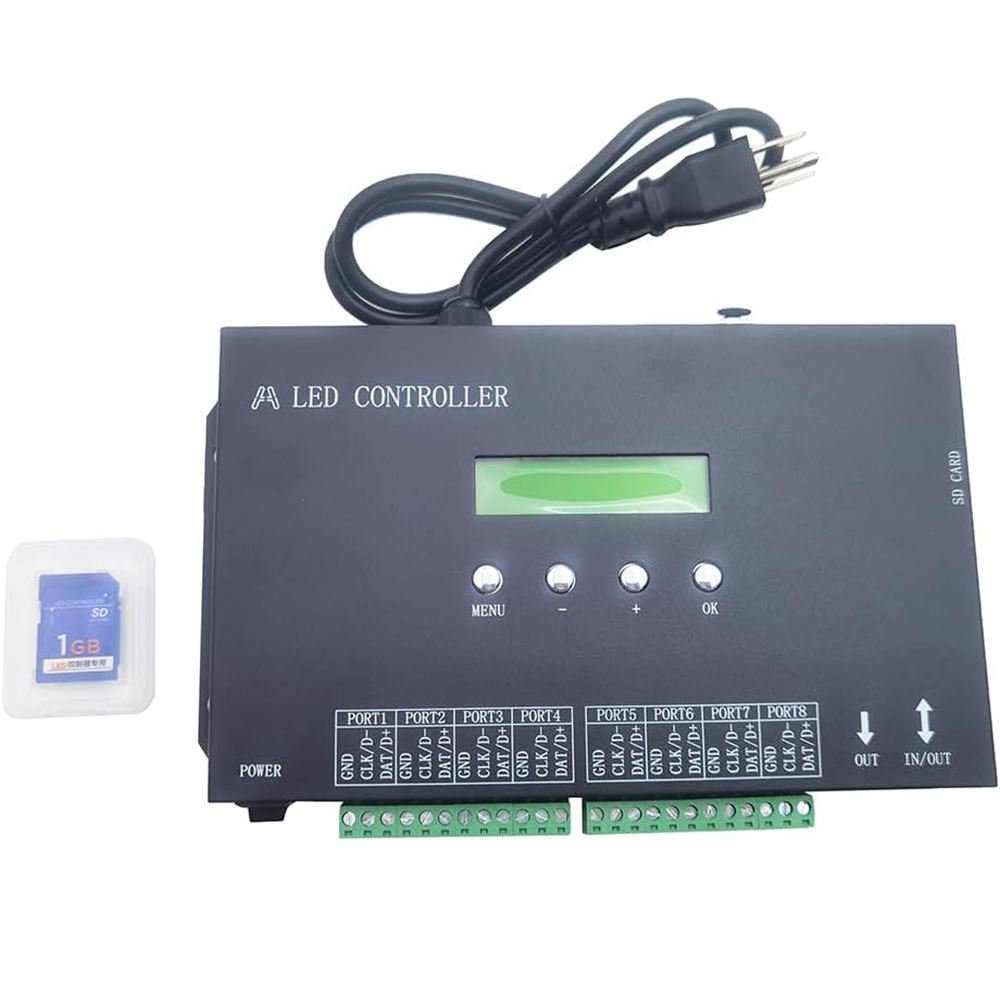

1 x LED Pixel Controller (H807SA or H807SB)
-
1 x Power Cord / Adapter
-
1 x User Manual
-
(Software download link provided)
Note: The "TW-509" marking in your image refers to a specific case/batch variant of this powerful 8-port controller series.
