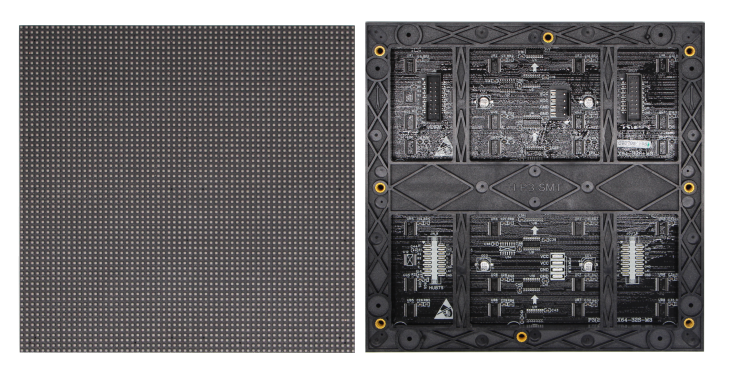

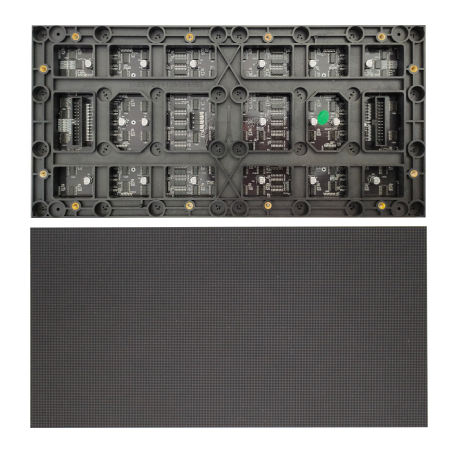

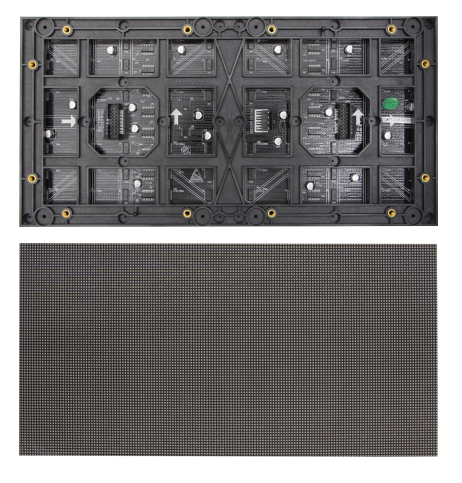

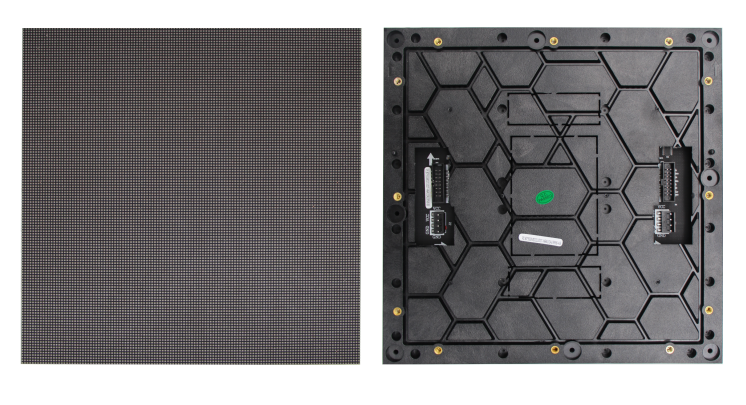

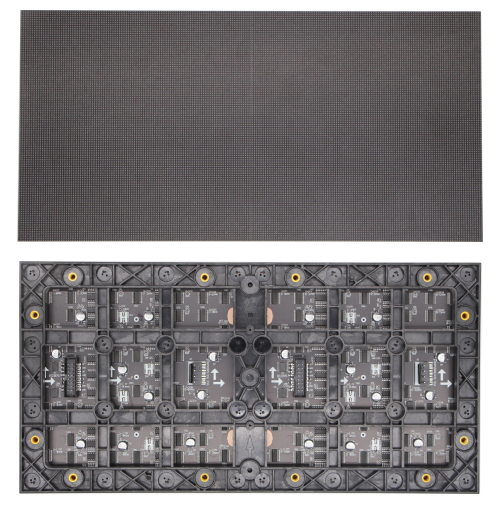

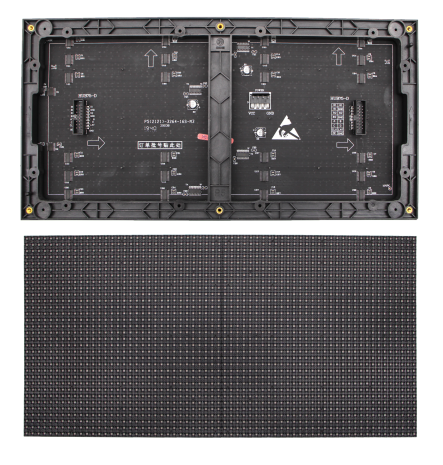

Indoor LED Screen Panel Module

Transform any indoor space into a stunning visual experience with this professional-grade LED display module. Designed for digital signage, video walls, broadcast backdrops, and control rooms, these panels deliver bright, seamless, and flicker-free imagery. With a market-leading 3840Hz refresh rate, they perform flawlessly under video cameras – no scanning lines, no ghosting. Choose your pixel pitch based on viewing distance: P1.25 for up-close clarity, or P4 for larger-format budget applications.

Key Features:

• Multiple Pixel Pitches (Choose by application):

  • P1.25 – Ultra-fine pitch, best for ≤2m viewing distance (control rooms, luxury retail)

  • P1.86 – Fine pitch, great for 2–3m viewing (conference rooms, TV studios)

  • P2 – Standard indoor pitch, ideal for 3–4m viewing (shopping malls, auditoriums)

  • P2.5 – Most popular value pitch, good for 4–6m viewing (digital signage, lobbies)

  • P3 – Budget indoor, best for 5–8m viewing (large halls, exhibition booths)

  • P4 – Economy option, suitable for 6–10m+ viewing (big indoor displays)

• 3840Hz High Refresh Rate: Zero flicker on camera – perfect for broadcast, live events, and video recording

• High Brightness: 800–1200 nits (adjustable) – vivid even under indoor ambient lighting

• Seamless Splicing: Precision die-cast aluminum cabinet with ±0.1mm tolerance – no visible gaps

• Wide Viewing Angle: 140° horizontal / 140° vertical – consistent color from any seat

• Easy Maintenance: Tool-free front or rear access (module-specific) – quick repair without removing the entire wall

• Magnetic Design: Quick-adjust magnets for fast installation and flatness correction

• Reliable Components: High-quality SMD LEDs, dual power/data redundancy options available

• Lightweight & Thin: Module thickness ≤15mm, weight ≤0.5kg per module (approx)

• Energy Efficient: Low power consumption (typically ≤20W per module) with active/passive cooling

• Control Compatibility: Works with standard LED sending cards (NovaStar, ColorLight, Huidu, etc.)

Technical Specs (P2.5 example – adjust per model):

What's Included (per module):

• 1× LED panel module (size & pitch as ordered)

• 1× Data ribbon cable

• 1× Power cable (or direct connector)

• Magnetic mounting hardware (pre-installed)

• (Full video wall requires frame, power supply, control card, and installation accessories – sold separately)

Applications:

• Retail digital signage and window displays

• Corporate lobbies and conference rooms

• TV broadcast studios and newsrooms

• Control rooms and command centers

• Event stages and trade show booths

• Shopping malls and airports

• Museums and exhibition halls

• Hotel ballrooms and auditoriums

Recommended Cabinet & System (not included):

• Die-cast aluminum cabinet (640×480mm or 640×640mm)

• Power supply (5V, 40A-200A depending on cabinet size)

• Sending card (NovaStar or equivalent)

• Receiving card (one per cabinet)

• Steel mounting frame or wall mount
