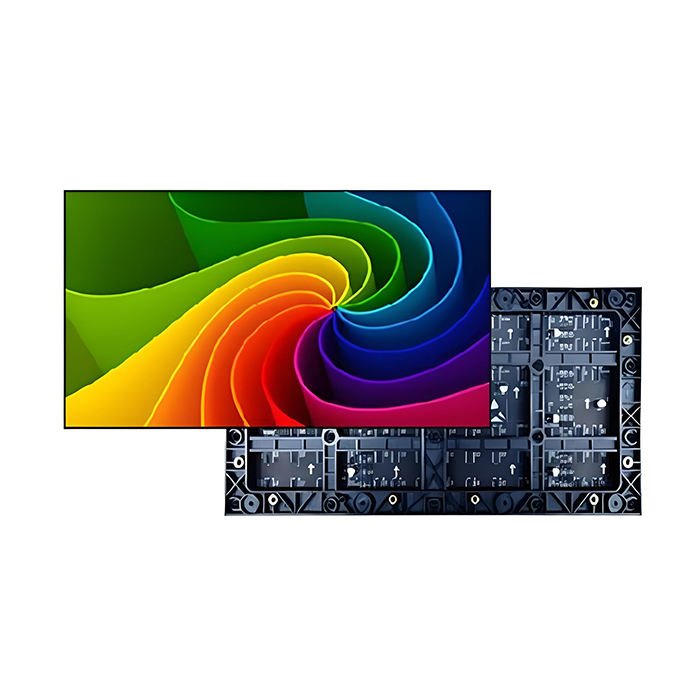

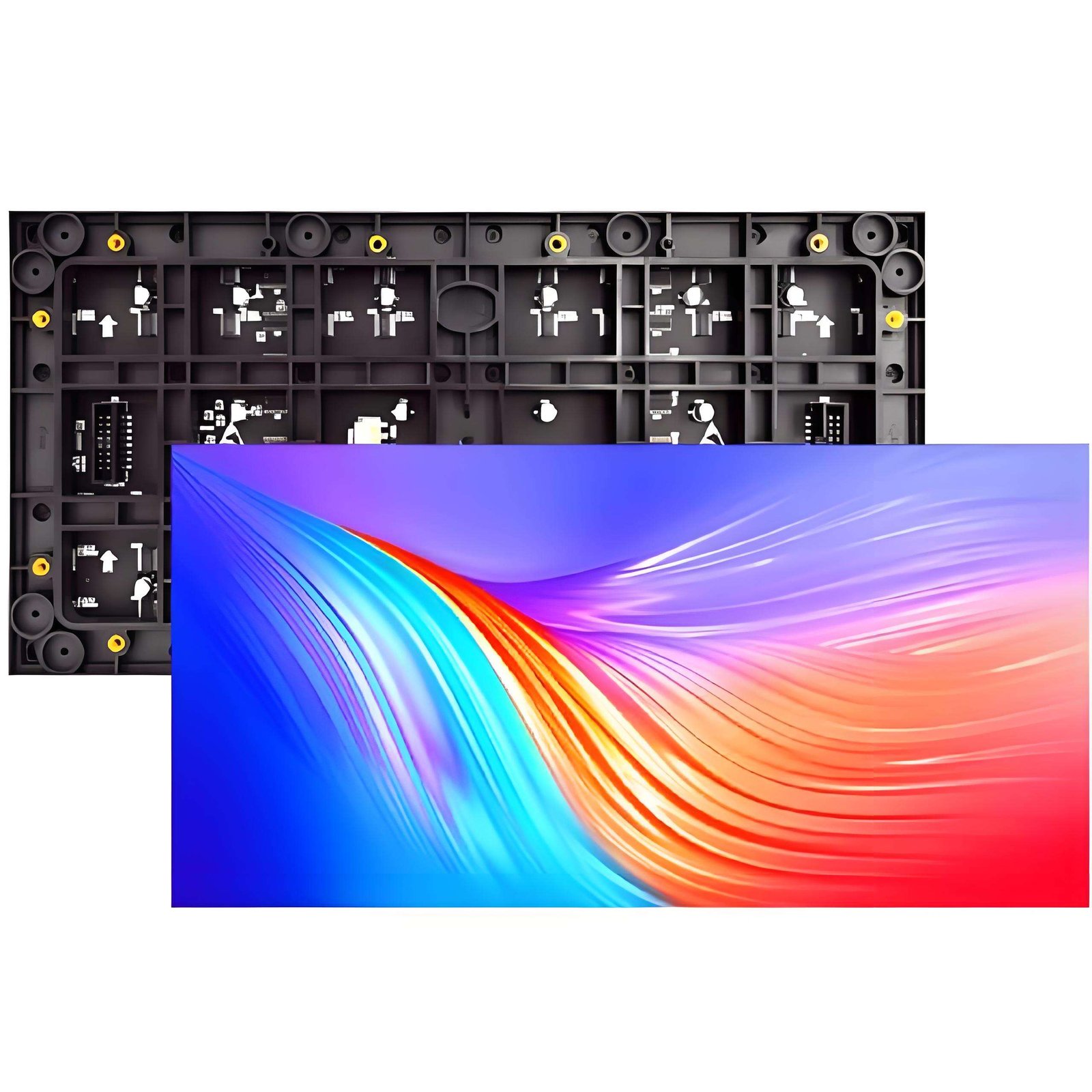

Transform any indoor space into a stunning visual experience with this professional-grade LED display module. Designed for digital signage, video walls, broadcast backdrops, and control rooms, these panels deliver bright, seamless, and flicker-free imagery. With a market-leading 3840Hz refresh rate, they perform flawlessly under video cameras – no scanning lines, no ghosting. Choose your pixel pitch based on viewing distance: P1.25 for up-close clarity, or P4 for larger-format budget applications.
Key Features:
-
Multiple Pixel Pitches (Choose by application):
-
P1.25 – Ultra-fine pitch, best for ≤2m viewing distance (control rooms, luxury retail)
-
P1.86 – Fine pitch, great for 2–3m viewing (conference rooms, TV studios)
-

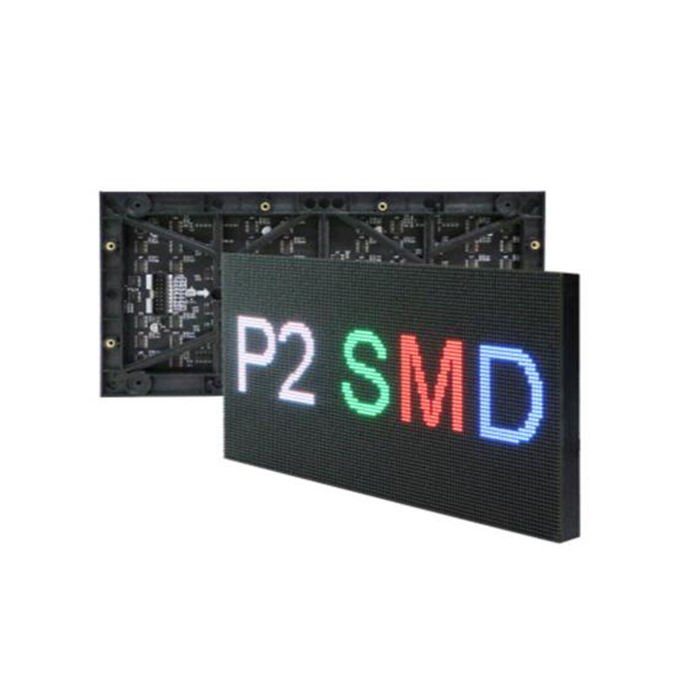

P2 – Standard indoor pitch, ideal for 3–4m viewing (shopping malls, auditoriums)
-
P2.5 – Most popular value pitch, good for 4–6m viewing (digital signage, lobbies)
-
P3 – Budget indoor, best for 5–8m viewing (large halls, exhibition booths)
-
P4 – Economy option, suitable for 6–10m+ viewing (big indoor displays)
-
-
3840Hz High Refresh Rate: Zero flicker on camera – perfect for broadcast, live events, and video recording
-
High Brightness: 800–1200 nits (adjustable) – vivid even under indoor ambient lighting
-
Seamless Splicing: Precision die-cast aluminum cabinet with ±0.1mm tolerance – no visible gaps
-
Wide Viewing Angle: 140° horizontal / 140° vertical – consistent color from any seat
-
Easy Maintenance: Tool-free front or rear access (module-specific) – quick repair without removing the entire wall
-
Magnetic Design: Quick-adjust magnets for fast installation and flatness correction
-
Reliable Components: High-quality SMD LEDs, dual power/data redundancy options available
-
Lightweight & Thin: Module thickness ≤15mm, weight ≤0.5kg per module (approx)
-
Energy Efficient: Low power consumption (typically ≤20W per module) with active/passive cooling
-
Control Compatibility: Works with standard LED sending cards (NovaStar, ColorLight, Huidu, etc.)
Technical Specs (P2.5 example – adjust per model):
| Parameter | Value |
|---|---|
| Pixel Pitch | 1.25mm / 1.86mm / 2mm / 2.5mm / 3mm / 4mm (select one) |
| LED Type | SMD (1515 for P1.25, 1921 for larger pitches) |
| Module Size (typical) | 320mm × 160mm or 320mm × 320mm |
| Module Resolution (P2.5) | 128 × 64 dots (640 × 320 per cabinet) |
| Refresh Rate | 3840 Hz |
| Brightness | 800–1200 nits (adjustable) |
| Viewing Angle | 140°/140° |
| Gray Scale | 14–16 bits |
| Power Consumption | Max: 30W/module; Avg: 15W/module |
| Input Voltage | 5V DC (with dedicated power supply) |
| Weight | ~0.45kg per module (320×160mm) |
| Lifespan | 100,000 hours (11+ years continuous) |
| Operating Temp | -10°C to 40°C |
| IP Rating | IP31 (indoor) – no waterproofing needed |
| Maintenance | Front or rear (specify when ordering) |

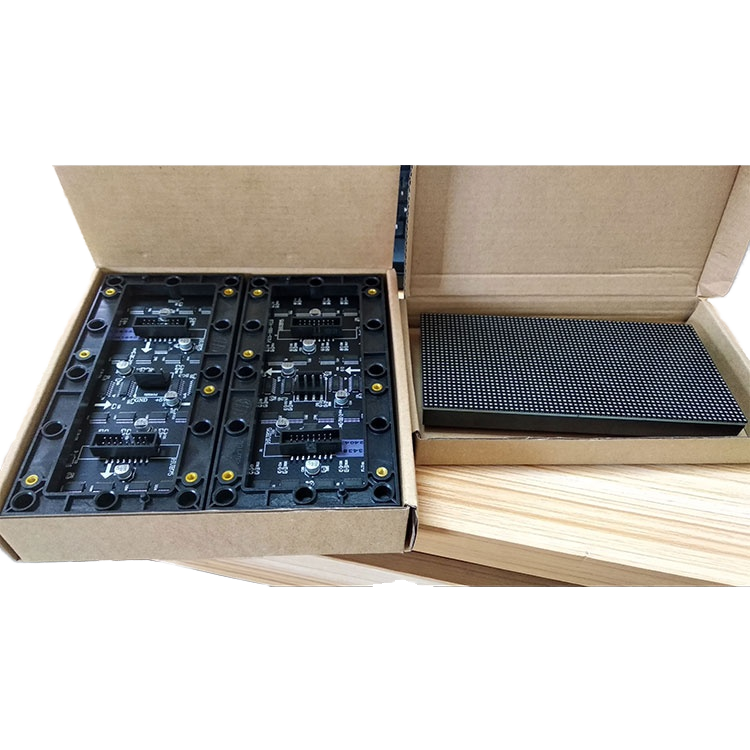

What's Included (per module):
-
1× LED panel module (size & pitch as ordered)
-
1× Data ribbon cable
-
1× Power cable (or direct connector)
-
Magnetic mounting hardware (pre-installed)
-
(Full video wall requires frame, power supply, control card, and installation accessories – sold separately)
Applications:
-

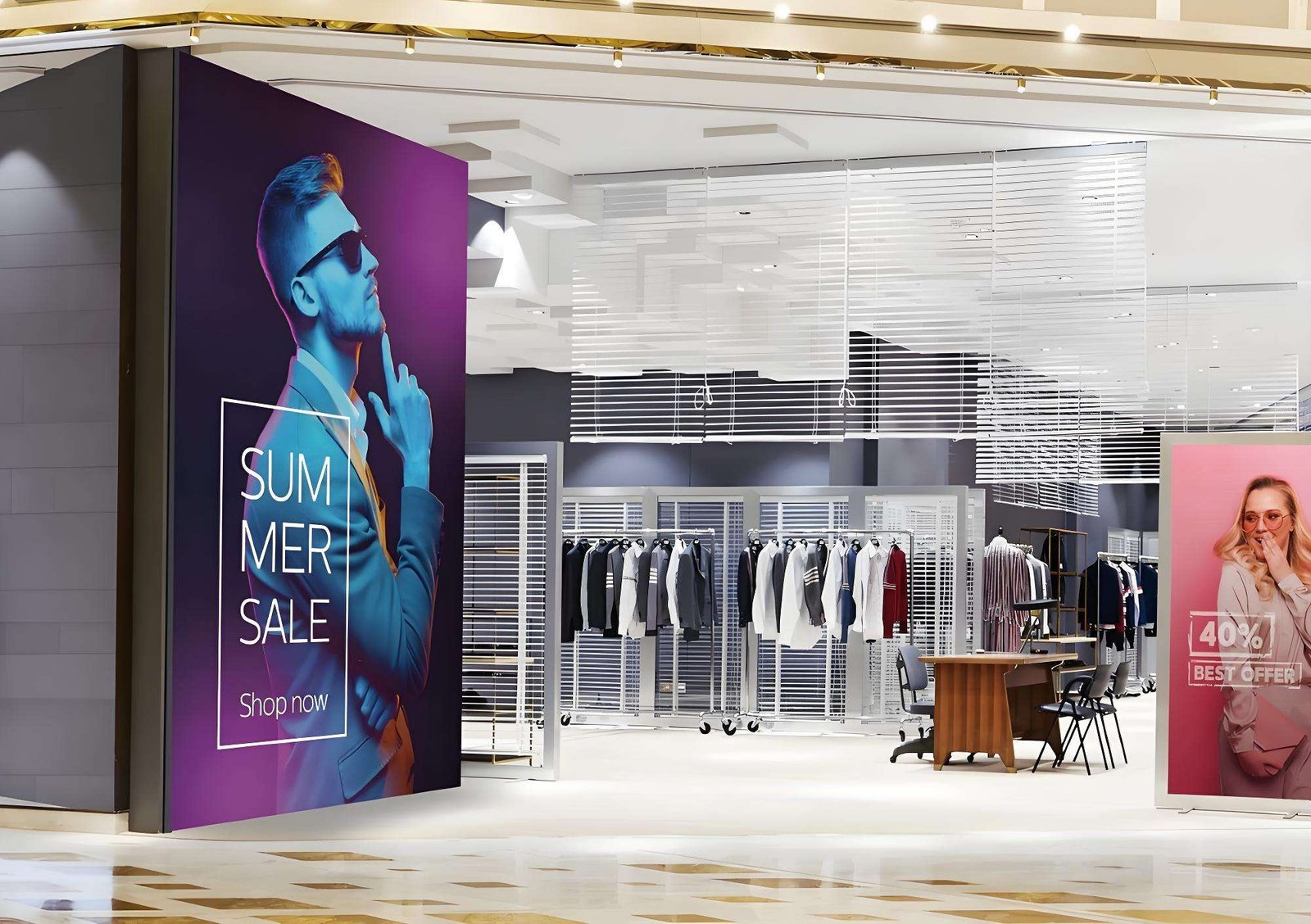

Retail digital signage and window displays
-
Corporate lobbies and conference rooms
-
TV broadcast studios and newsrooms
-
Control rooms and command centers
-
Event stages and trade show booths
-
Shopping malls and airports
-
Museums and exhibition halls
-
Hotel ballrooms and auditoriums
Recommended Cabinet & System (not included):
-
Die-cast aluminum cabinet (640×480mm or 640×640mm)
-
Power supply (5V, 40A-200A depending on cabinet size)
-
Sending card (NovaStar or equivalent)
-
Receiving card (one per cabinet)
-
Steel mounting frame or wall mount
