Professional-Grade Pixel Control for Complex Installations
The H807SA is a sophisticated 8-port LED pixel controller designed for lighting designers, integrators, and advanced hobbyists. It bridges the gap between professional lighting networks and high-density LED installations, translating Art-Net, DMX, or network signals into SPI data that thousands of WS2811, WS2812B, and WS2813 pixels can understand.
Key Technical Specifications
| Feature | Specification |
|---|---|
| Model | H807SA (8-Port Ethernet) |
| Max Pixels | 8,192 pixels (8 ports x 1,024 pixels/port) |
| Connection | RJ45 Ethernet (Art-net) & DMX512 Console Input |
| Input Voltage | AC 110-220V / 90-240V (Standard) or DC 6V (Model dependent) |
| Control Modes | Art-Net (PC), DMX Console, Offline SD Card, Screen Capture |
| Supported ICs | WS2801, WS2811, WS2812B, WS2813, APA102, SK6812, DMX512, and 50+ more |
Four Powerful Control Modes for Ultimate Flexibility
-
Art-Net Mode (LAN): Connect via RJ45 to your local network and use professional PC software like Madrix, Jinx, Resolume, or LEDEdit to generate real-time, complex lighting effects. Supports remote distances of up to 100 meters for flexible installation .
-
DMX Console Mode: Connect directly to a professional lighting desk via DMX512 input for seamless integration with stage and theater setups.
-
Offline SD Mode: Upload pre-programmed sequences to a standard SD Card. This allows for standalone, reliable playback without needing a computer or active network connection (supports SDHC up to 64GB) .
-
Screen Capture Mode: Mirror a portion of your PC display directly to the LEDs for synchronized video mapping.

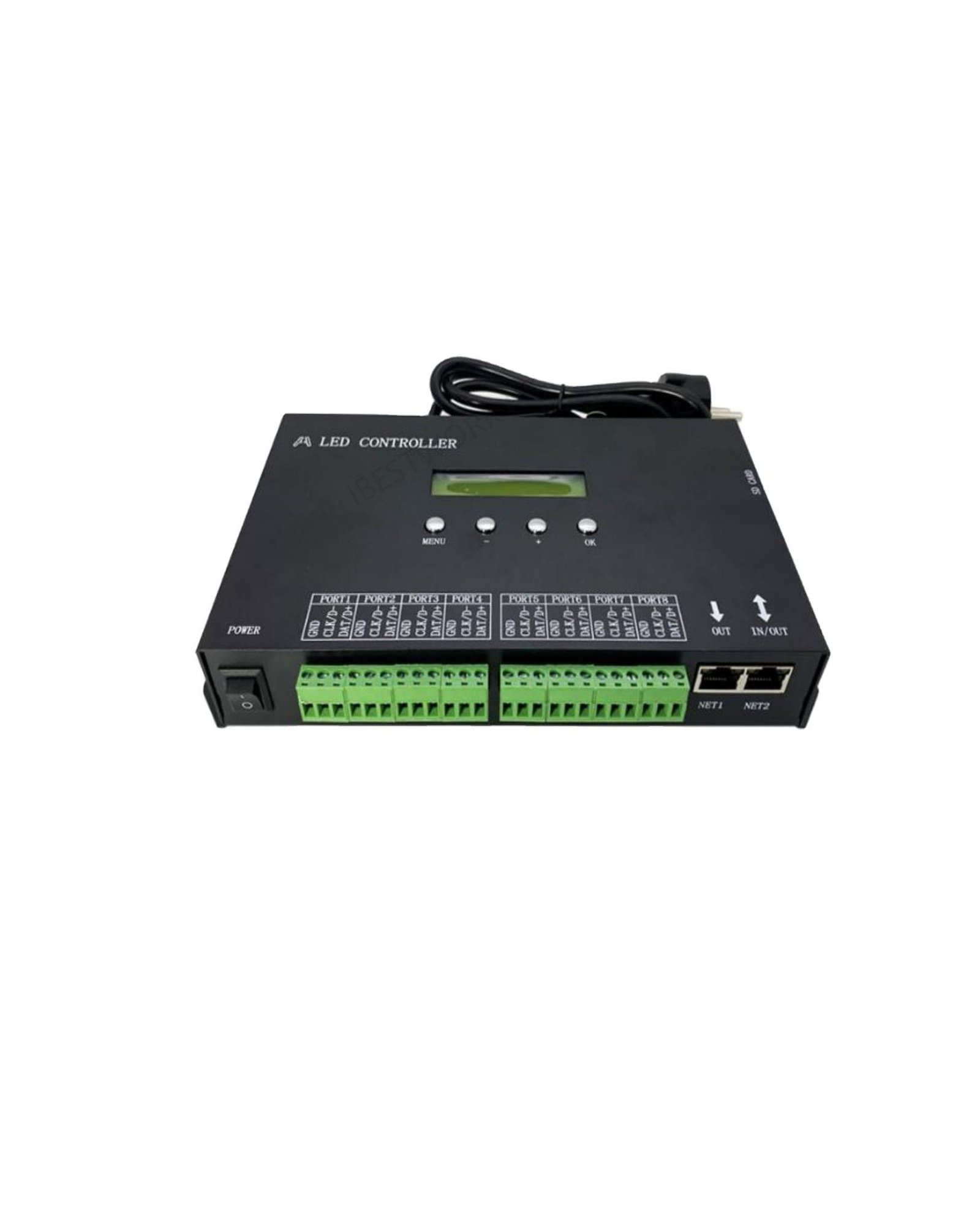

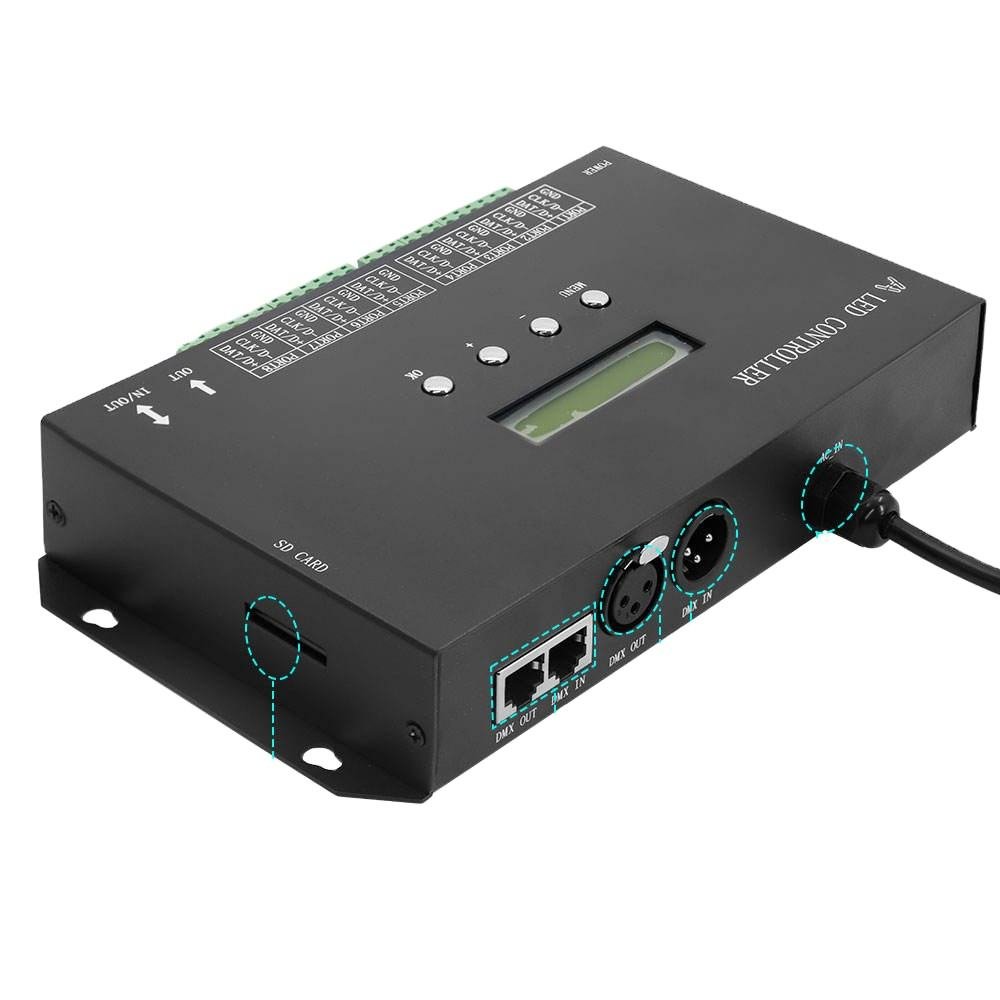

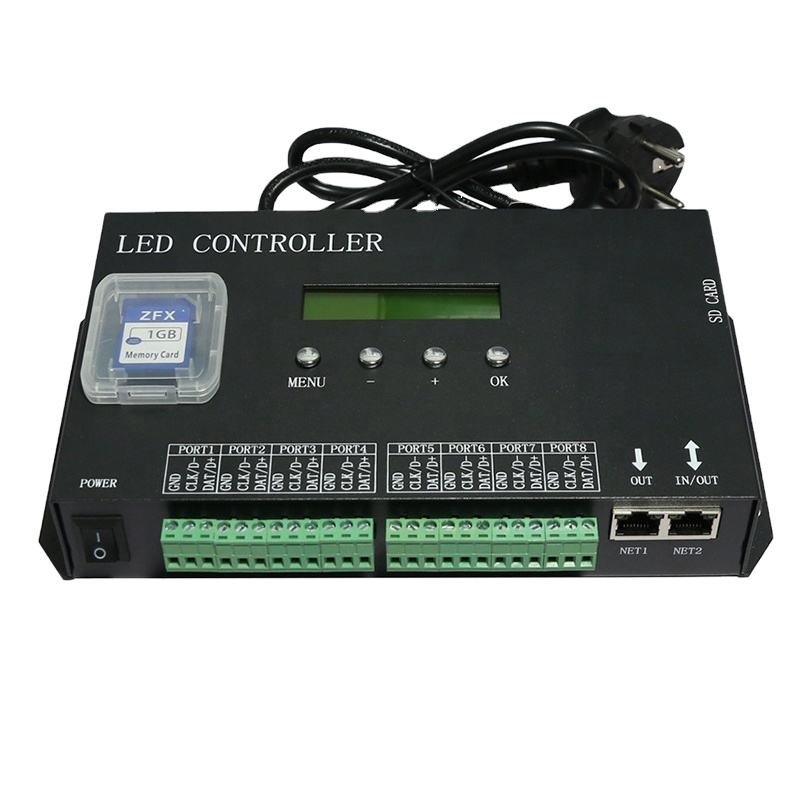

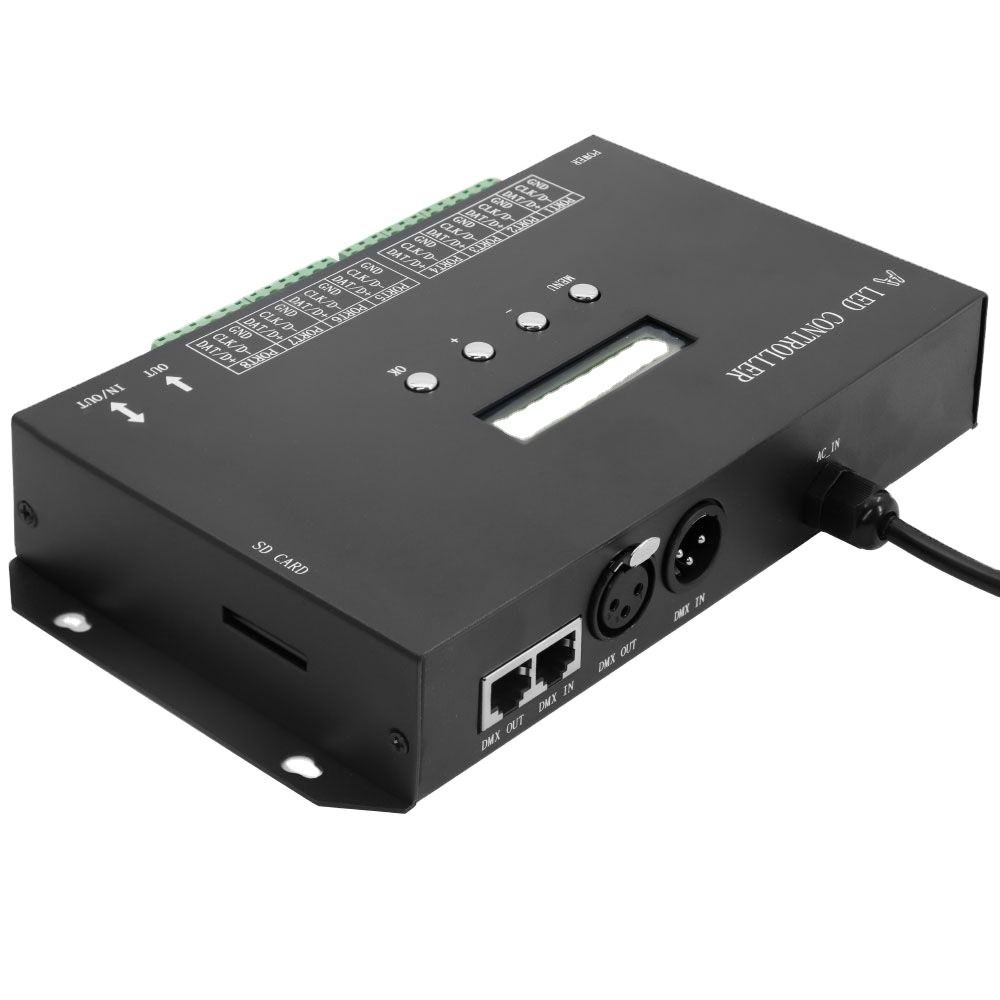

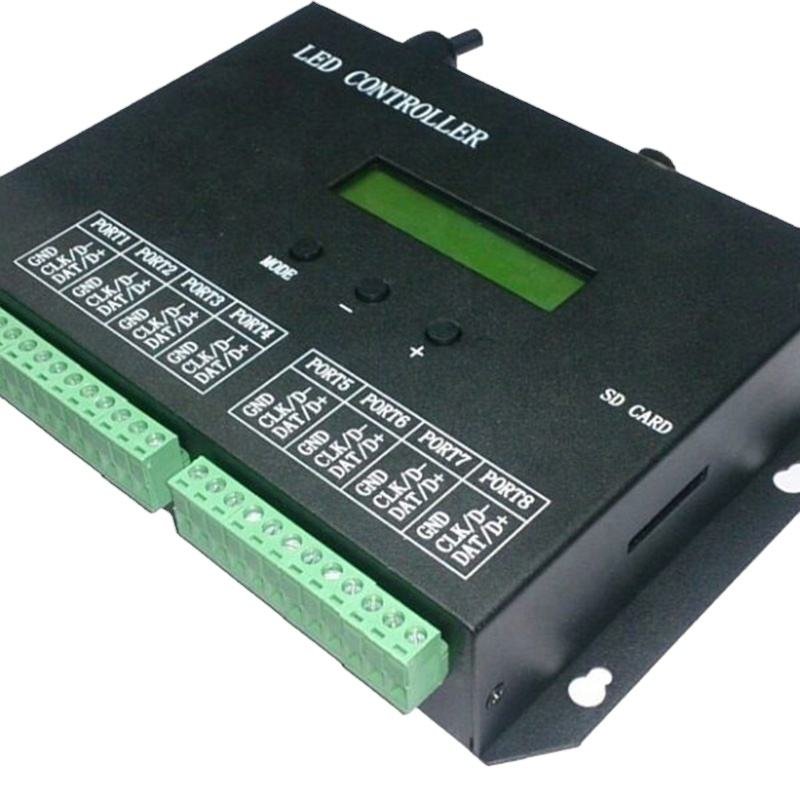

Professional Hardware & Build
-
Construction: Durable metal/aluminum alloy housing with effective heat dissipation .
-
User Interface: Features a bright LCD display and an "OK"/"MENU" button panel for adjusting DMX addresses, pixel count, and test patterns directly on the device without a computer.
-
Output Ports: 8 high-speed SPI ports (labeled PORT1-PORT8 and NET1/NET2). Note: If using software that only supports 4 outputs, Ports 5-8 will mirror the data of Ports 1-4 .
-
Sync Capability: Supports LAN synchronization for large, multi-controller setups.
What's in the Box?
-
1 x H807SA LED Pixel Controller
-
1 x Power Cord / Adapter (check specific voltage)
-
1 x User Manual (Software download instructions included)
Perfect For: Large Scale LED Facades, Stage Backdrops, Christmas Light Displays, Commercial Signage, Media Facades, and Art Installations.
