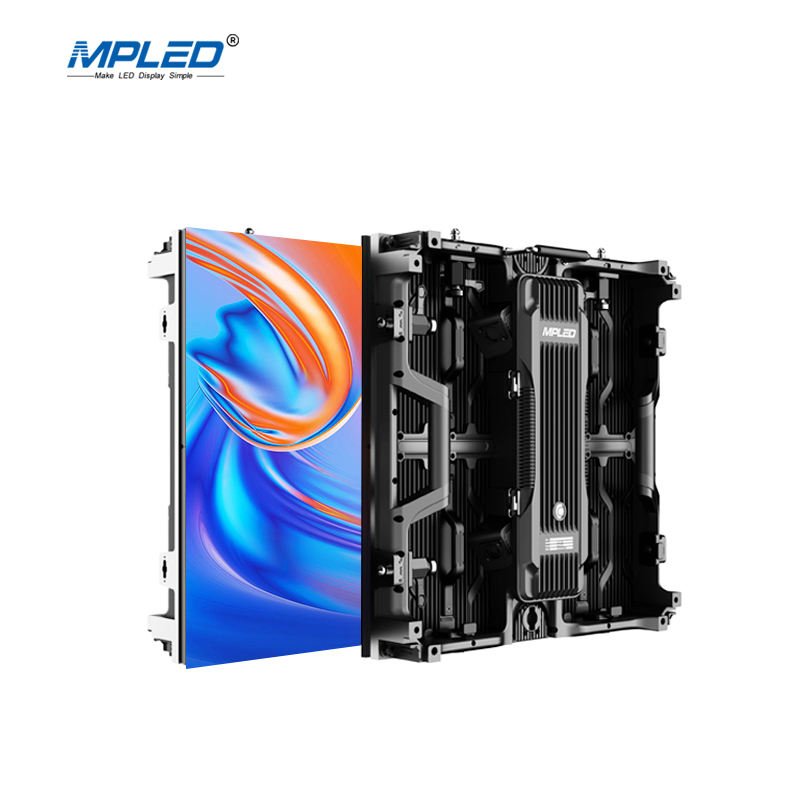

Canbest XS Series Smart LED Video Wall Panel – P1.9

The Canbest XS Series is a professional-grade modular LED video wall engineered specifically for the mid-to-high-end rental and event market. Designed for concerts, corporate gatherings, trade shows, festivals, and house of worship installations, these panels deliver broadcast-quality visuals with mission-critical reliability. The standout feature of the XS Series is PST (Power Share Technology) – a game-changing innovation that eliminates the risk of a black screen during live events. If a power unit fails, adjacent panels provide DC power backup, allowing the display to continue running uninterrupted .

Available in pixel pitches of P1.9 (ultra-fine), P2.6 (fine), and P3.9 (standard), the XS Series also supports curved, 90-degree corner, and flat configurations using the same cabinet design, giving creative directors unprecedented flexibility for staging and set design .

Key Features:

• Never Black Screen Technology (PST + PMS): Canbest's proprietary Power Share Technology allows LED panels to be powered by neighboring DC power when an AC circuit fails. The integrated PMS (Power Monitoring System) continuously monitors all power supplies and instantly locates any failure, alerting operators via software for rapid replacement. This dual-redundancy system ensures zero downtime – critical for live broadcasts, high-profile events, and televised productions .

• Multiple Pixel Pitches (Choose by Application):

  • P1.9 – Ultra-fine pitch (425 dpi), optimal viewing distance 1–4 meters. Ideal for luxury events, broadcast studios, and up-close viewing where maximum resolution is required. Brightness: up to 2,000 nits .

  • P2.6 – Fine pitch (312 dpi), optimal viewing distance 2–6 meters. Best balance of resolution and cost for mid-to-large scale events like conferences, exhibitions, and live music. Brightness: up to 1,500 nits .

  • P3.9 – Standard pitch (208 dpi), optimal viewing distance 3–8+ meters. Most popular for large outdoor stages, arena tours, and festival main screens. Brightness: 1,000–1,600 nits .

• Smart Curved & Flexible Configuration: The modular cabinet design supports flat, curved, and 90° inside/outside corner configurations. Magnetic connectors and precision die-cast aluminum cabinets (±0.1mm tolerance) enable rapid assembly and seamless splicing – even for complex stage geometries .

• Broadcast-Grade Visual Performance:

  • Refresh Rate: 3,840–7,680Hz – zero flicker, perfect for camera recording and slow-motion playback

  • Gray Scale: 16-bit – smooth gradients and natural color reproduction

  • Brightness: 800–2,000 nits (model dependent, adjustable)

  • Contrast Ratio: 8,000:1 – deep blacks and vibrant colors

  • Color Capability: 281 trillion colors

• Built for Rentals & Events:

  • 1-Second Module Auto-Detection: PMS software pinpoints faulty modules instantly, minimizing troubleshooting time and operational costs

  • Tool-Free Maintenance: Front or rear access for rapid module swapping

  • Lightweight & Stackable: Die-cast aluminum cabinets are both rugged and portable

  • 5-Year Warranty: Industry-leading coverage for peace of mind on the road

• Indoor & Outdoor Versatility:

  • Indoor (IP30/IP31): For controlled environments – concerts, conferences, TV studios, retail

  • Outdoor Waterproof (IP65): Withstands rain, dust, and direct sunlight – for festivals, outdoor tours, and signage

• Seamless 8K/4K Support: Scalable architecture for any screen size – from small stage backdrops to 100m²+ main displays .

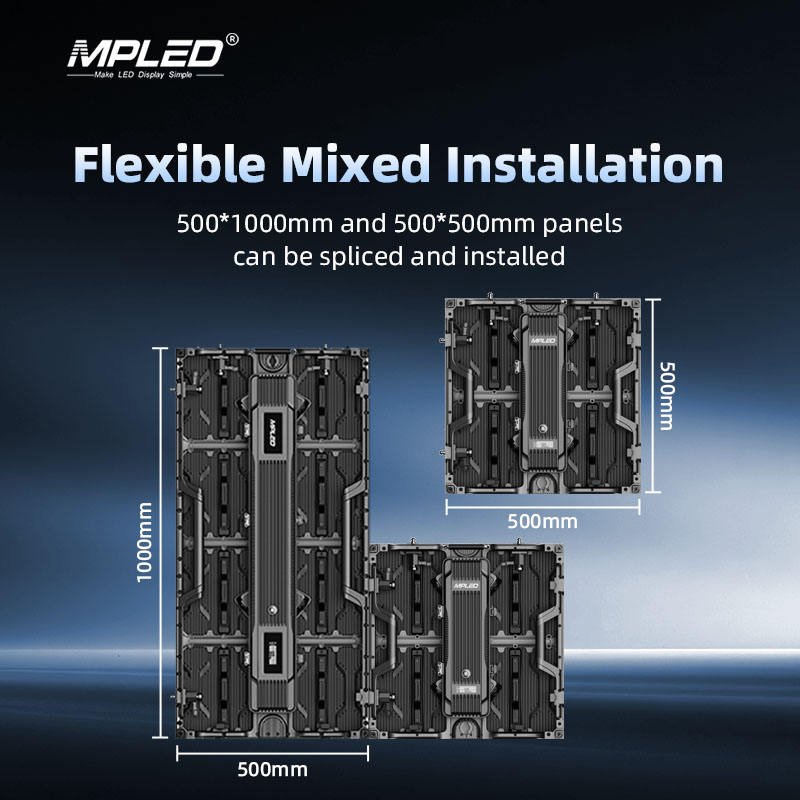

Technical Specifications (Cabinet: 500×500mm or 500×1000mm):

What's Included (per cabinet, typical order):

• 1× Canbest XS Series LED cabinet (500×500mm or 500×1000mm, pitch as ordered)

• Factory-assembled SMD LED modules

• Integrated receiving card (compatible with NovaStar, ColorLight, etc.)

• Power supply unit (with PST redundancy connectors)

• Magnetic mounting hardware

• Data & power cables

• IP-rated connectors (outdoor versions)

• Quick start guide

Complete System Requirements (for full video wall):

• Sending card (NovaStar H-series or equivalent)

• Media server or laptop with HDMI/DP output

• Rigging system (truss, ground stack, or wall mount – not included)

• Main power distribution box

• Optional: PST backup power loop cables

Applications:

• Concert tours and music festivals

• Corporate events and product launches

• Trade shows and exhibition booths

• Broadcast studios and virtual production

• House of worship (church stages)

• Rental and staging companies

• Sports arenas and stadiums

• Retail flagship and experiential marketing

Why Choose the Canbest XS Series for Rentals:

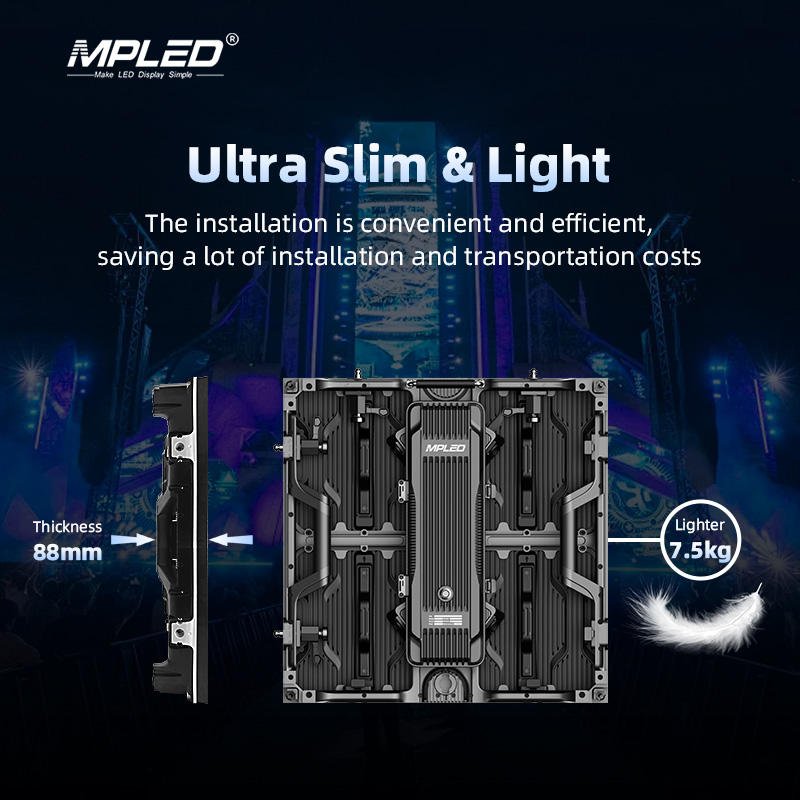

The XS Series is purpose-built for the rental environment. Features like the 1-second auto-detection system dramatically reduce downtime – technicians can instantly identify a failing module via software without visually inspecting dozens of cabinets . The PST backup power system means even a complete AC circuit failure won't take down your display . Combined with the lightweight die-cast aluminum construction (approx. 12kg per 500×500mm cabinet), the XS Series strikes the ideal balance of durability, portability, and reliability.

Never Black Screen – Explained:

Traditional LED walls are vulnerable to power failures: if a power supply unit dies, an entire section of the display goes dark. PST technology connects panels via DC power sharing. When one panel loses AC power, it draws DC power from neighboring panels, maintaining illumination and content playback. The PMS system provides real-time alerts, so damaged components can be replaced after the event – not during it. For live broadcasts and high-stakes events, this is a non-negotiable feature .
