Create a Spectacular Welcome
Elevate the ambiance and safety of your home, cinema room, or commercial lobby with the 32-Channel LED Stair Light Controller. This device transforms how you experience a staircase, turning it into a dynamic architectural feature that responds to your presence. It provides not just visual luxury but practical safety by illuminating each step right where you are walking .

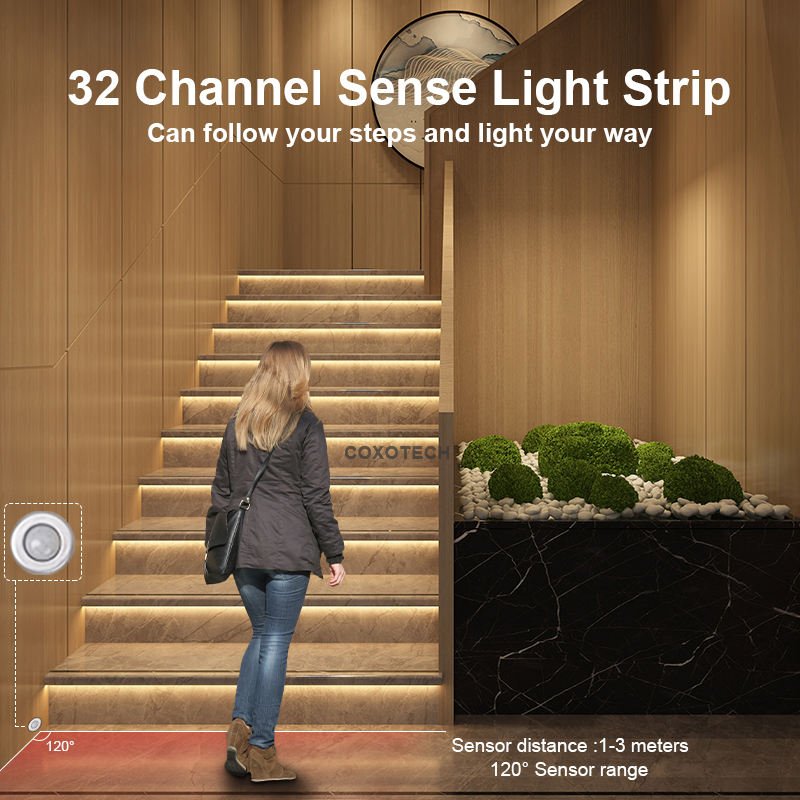

How the "Follow-You" Light Works
The kit includes two Passive Infrared (PIR) sensors. You install one at the top of the stairs and one at the bottom.
-
Going Up: When the bottom sensor detects you, the controller turns on the first step light, then the second, the third, and so on, keeping the light right in front of you.
-
Going Down: When the top sensor detects you, the process reverses, starting from the top step down to the bottom.
-
Auto Turn-Off: Once you have passed a step, the light turns off behind you, saving energy .
Technical Specifications & Compatibility
-
Channel Capacity: 32 Channels (Controls one step per channel) .
-
Voltage Support: DC 12V or 24V (Matches standard LED strip voltage).
-
Load Capacity: Each channel supports up to 1A (approx. 12W-24W per step) .
-
Sensor Details: Comes with 2 PIR sensors (detection range roughly 3-5 meters) .
-
Display & Interface: Features an OLED screen with a simple 3-button menu for configuration .
Adjustable Settings
You have full control over the timing and aesthetics:
-
Lighting Speed: Set how fast the lights "chase" across the steps.
-
Step Count: Program the number of steps (1 to 32) to match your specific staircase.
-
Brightness Mode: Adjust the intensity or choose from preset lighting modes (e.g., "Following Mode," "All-On Mode," "Night Light Mode") .
-
Daylight Sensor: Prevents the lights from turning on during broad daylight to save power .

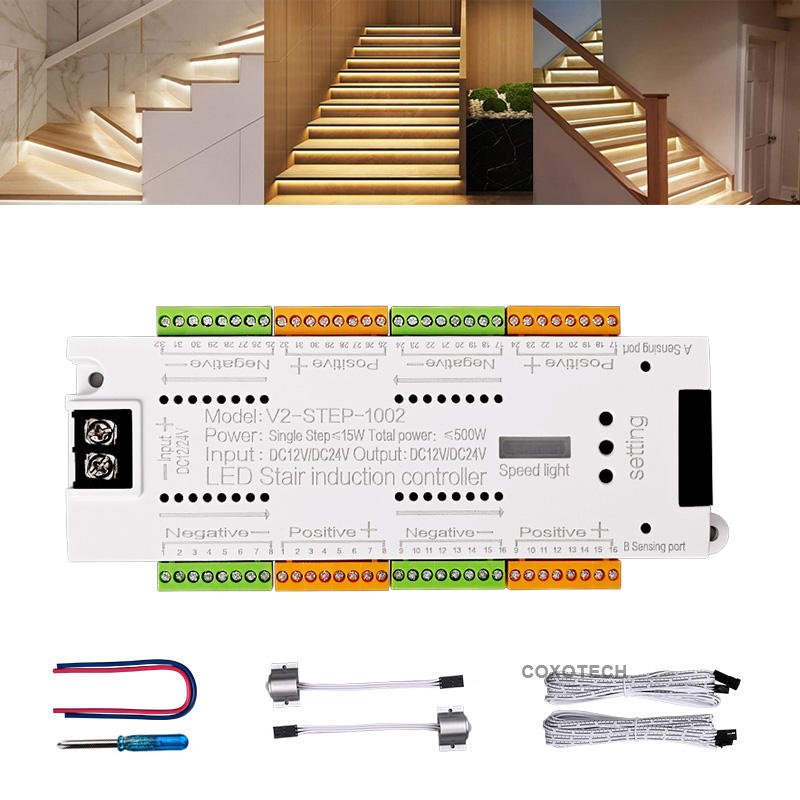

What's in the Box?
-
1 x 32-Channel Main Controller
-
2 x PIR Motion Sensors (with extension cables)
-
1 x Daylight Sensor
-

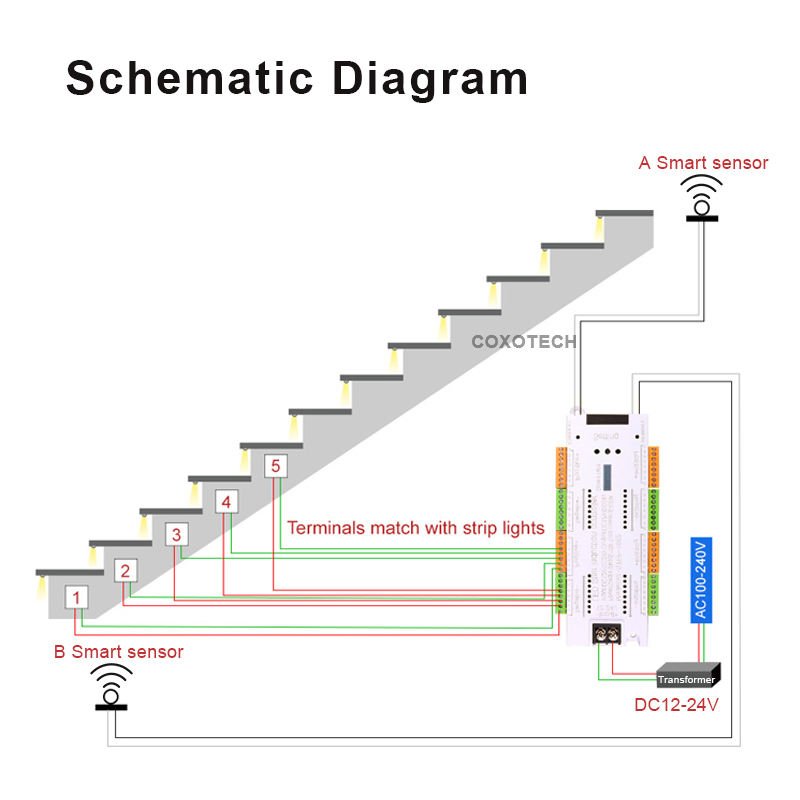

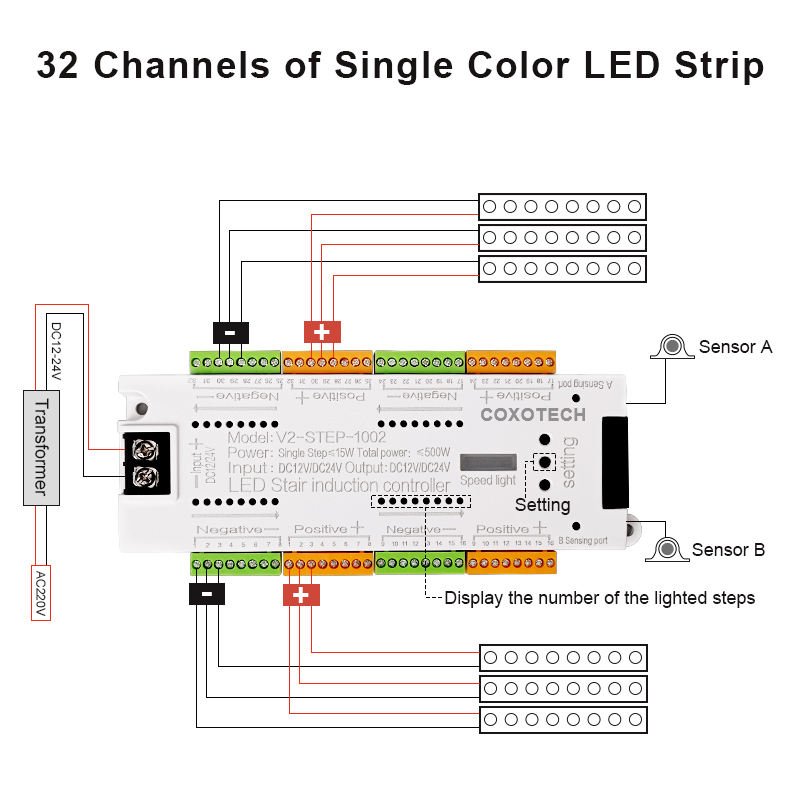

Manual/Wiring Diagram
Note: LED strips and power supply are sold separately. Always match your LED strip voltage (12V or 24V) to the controller input.

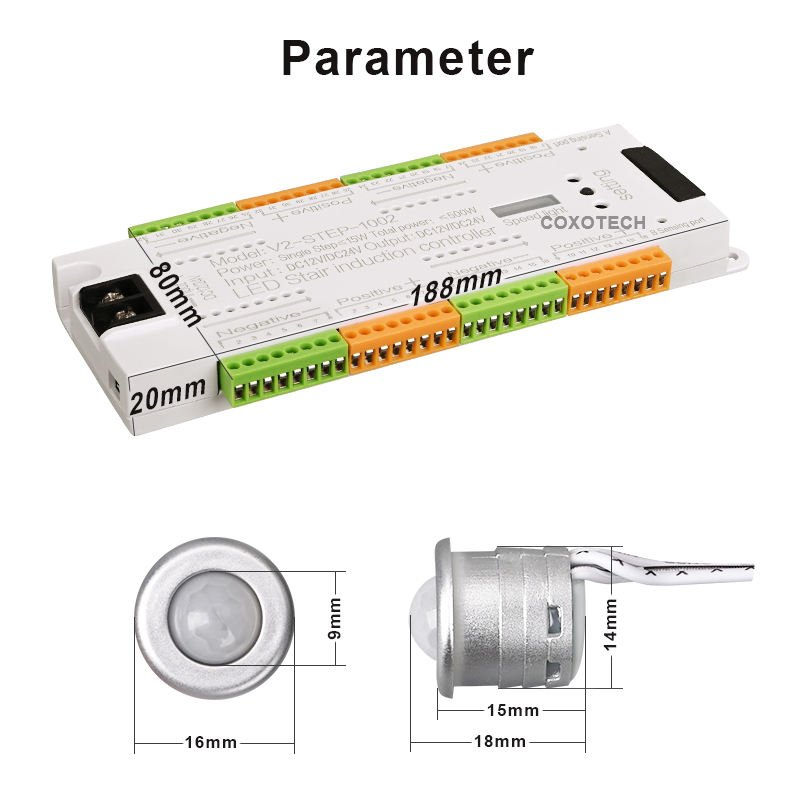

Technical Specifications Table
| Specification | Details |
|---|---|
| Product Name | 32 Channel Stair Light Controller |
| Input Voltage | DC 12V / 24V (Auto sensing) |
| Output | 32 x (5-24)V DC, Max 1A/Channel |
| Max Power | ~400W total (Depends on power supply) |
| Sensors | 2x PIR Motion Sensors (Top & Bottom) + 1x Daylight Sensor |
| Control Modes | Following, All-On, Night light, Speed adjustable |
| IC Compatibility | WS2811, WS2812, SK6812, etc. (for digital addressable strips) |
| Protection | Reverse polarity, Over-current (with correct fuse) |
| Housing Material | ABS Plastic / Aluminum |
